Meeting Productivity Optimized with Interactive Presentations on Touch Displays

Known for its multi-touch WirelessTouch™ capability, this VisionShare AC touch series (comes with either HDMI or Type-C connectivity – or both!) is a powerful marriage between high-performance touchback functionality and advanced, innovative technologies tailor-made for wireless presentation, such as our proprietary 60Ghz and mmWave.

The mighty thumb drive-sized touch transmitter turns your touch displays into professional drawing boards that sync with the connected device in real-time.



Whether you are presenting a graphics-intensive report or showing off your vision for the city's new urban design, the portable wireless transmitter ensures crystal-clear resolution.



No cables, no latency, no hassles.

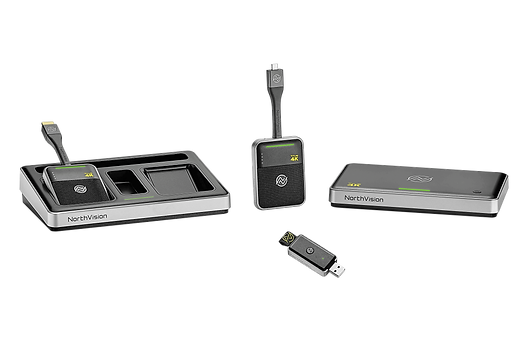

VisionShare AC25 (WUXGA) / AC45 (4K)

True Plug & Play Wireless Multi-Touch

Presentation Solution

  • High performance of WUXGA or 4K video quality

  • Power embedded and HDMI or USB-C plug & play

  • Support multi-touch wirelessly with software free

  • Compatible for most touch display & VisionBoard

  • True Plug & Play, no software & no driver

59287 [轉換]-02.png

HDMI

59287 [轉換]-05.png

USB-C

59287 [轉換]-06.png

4K

59287 [轉換]-07.png

TOUCH

VisionShare Key Features

Vision a professional collaboration solution

Multi-Touch Technology

Wireless back control system without software & driver needed. Support multi-touch up to 10 points touch. Compatible for most touch display & VisionBoard.

2019 NV brochure_f_newcover06all-05.png
AC45_橫_綠光-compressor (1) (1).png
60ghz

New Wireless 60GHz Technology

Achieved a new level of wireless generation by using 60 GHz frequency band, we deliver a great technology impact with satisfying results.

True Plug & Play

Simply plug in the HDMI HDMI/USB-C  player and get started. No software or driver installation and no maintenance is required.

hdmi-usbc-頭-compressor (1).png
wireless presentation
wirelesss presentation 4k wuxga

True 4K and WUXGA

offer the best viewing experience

Enhance your entertainment experience by delivers a vividly clear picture, without compression lost.


VisionShare AC25

1920X1200P@60Hz


VisionShare AC45

3840X2160@30Hz


Simply Connect with True Performance

Intuitive meeting from huddle room to conference room.

Support multi-Touch Wirelessly

The VisionShare Touch feature supports multi-point and high touch accuracy, you can draw a very delicate smooth curve, and can touch to any corner of the screen points.

Support BYOD

VisionShare wireless presentation system made for BYOD content sharing in huddle rooms and many other types of meeting spaces. It lets you connect an iOS, Android, Chromebook, or PC.

Compatible for

most Touch Display

VisionShare delivers stunning front-of-screen performance with a responsive and accurate touch experience. Compatible for most of touch display infrared(IR) &FlatFrog touch system (Samsung Flipchart).

Be instantly connected

with no installation required

You can use VisionShare right away, from your laptop, tablet or smart phoneMake your presentation

an unforgettable experience for your audience.

Touch Back and

Annotation with Touch Screen

The VisionShare Touch Back feature allows you to wirelessly interact with a computer via your touch screen. Touch screen gestures with up to 10 finger gestures can be sent wirelessly back to your computer to the transmitter via the receiver. All known  touch gestures are supported.

The Most Secure Enterprise Wireless Presentation System

Proprietary 60GHz Network


BeamForming Technology


Point to Point Connection


No USB,No Software


Raw Data Encryption


HDCP/DTCP Certificated

VisionShare AC25 | AC45 Wireless Presentation System

_MG_4726-compressor (2).png
  • Battery Power LED Indicator

  • Signal LED light

USB-C /HDMI Plug &Play

Extend Desktop

One Play Button

_MG_4870-compressor (1).png

 BYOD Screen Mirroring

Auto Pairing​

Automatic pairing by simply press

Play button for 10 sec to connect with Receiver.

Mobility carry from room to room.

 Support personal devices and Notebook Wirelessly in split-screen

Texture

LED Bar

  • Water Resistant

  • Magnetic Attraction

  • UV coating

  • Fast Switch between  Players

  • Power Embedded

Simply plug into PC HDMI / USB-C then push the play button to start presenting immediately.

_MG_9203 (1) (1).png

Wireless Multi-Touch Technology​

VisionShare AC25 / AC45 support Wireless

touch back control to PC.

Perfect solution with touch display.

PAIRING  RESET   USB/TOUCH   HDMI OUTHDMIOUT1KEYBOARD/MOUSE   LAN  DC IN 5V/4A  AUDIO OUT

I/O Connecivity

charging_station_1000x1000-compressor-re
  • Cordless Power Charging Station

  • Magnetic Attraction Design

Power Station

Simply place the player onto charging station for fast power charging connection without cables and hassles set-up.

VisionShare support 2x HDMI outputs are to provide same image for two displays or projector.

Quick Specs

Product Series

VisionShare AC25    | VisionShare AC45

Resolution

1920x1200p@60Hz   | 3840x2160@30HZ

Frequency Band

60GHz

Video Quality

UnCompressed True Video Quality

Support OS

Windows/MAC/Chrome/Android/iOS

Transmitter

HDMI 1.4x1 USB-Cx1(DP support)  |        HDMI 2.0x1 USB-Cx1(DP support)

Battery Embedded

2500mAh support up to 3.5 hours usage

Charge Function

Micro USB or Cordless Charging Pin

Receiver

HDMI output x2 USB TypeA x2 (Keyboard/Mouse/Touch) LAN x1 3.5mm Audio x1 Power Jack x1

USB Wireless Touch

USB A to Bcable x1

Product Series

VisionShare AC25                                     VisionShare AC45

Resolution

Up to 1920x1200 @60Hz                                Up to 4Kx2K (3840x2160) @30Hz

Video Quality

Uncompressed content

Video Frame Rate

Up to 1920x1200 60 fps                               Up to 3840x2160 30 fps

Frequency Band

60GHz Wireless HD

Support OS

Windows / MAC / Chrome / iOS / Android

Data Rate Wireless

Up to 28Gbps

Wireless Distance

Up to 10 m / 33 feet

Video Output Receiver

           HDMI 1.4x1 USB-C x1 (DP Support)                       HDMI 2.0x1 USB-C x1 (DP Support)

Player Battery

                                                                Up to 3.5 hours

Player Connector

HDMI input x1, Micro USB x1, Button x1 (Play/Stop)

Base Station Connector

HDMI output x2, RJ45 LAN x1, 3.5mm Audio out x1, USB Type A x1

Mirroring360 Supports

BYOD, Split-Screen, Screen Mirroring / Air play

Dual Display Output

Yes

Extended Desktop

Yes

Power Supply

Input: AC 100-240V, Output:5V/4A
