VisionShare Series
Wireless TRUE Performance Collabotation System



Huddle Room
Standard Meeting Room
Corporate Meeting Room
Interactive Meeting Room
Wireless Touch Solution
All Meeting Room
Small work space and meeting area
Interactive Touch Display Meeting Room
Small to Middle size Meeting Room
Full range of Meeting Room
Interactive Touch Display Meeting Room
Small to large meeting rooms

Huddle Room Suitable
VisionShare A10 (HDMI), single player is an idea for office huddle areas or small meeting room environments. With single HDMI plug & play functionality, small groups can collaborate easily with more flexible approach to get work done without complicating the setup process. VisionShare A10 provide big benefits for small meeting space.

VisionShare A10 / 10+
Small Space .Big Benefits
-
Support high performance up to 1080p and WUXGA resolution
-
True HDMI plug & play without the learning curve
-
Self-power support 3-3.5 hours usage
-
Free WiFi Interference
-
Secure and Versatile Presentation System
-
No Software, No Driver, No Training
![59287 [轉換]-02.png](https://static.wixstatic.com/media/be661a_ca686ace3e5d4c6cb53d644b4ea0aa8f~mv2.png/v1/fill/w_56,h_56,al_c,q_85,usm_0.66_1.00_0.01,enc_auto/59287%20%5B%E8%BD%89%E6%8F%9B%5D-02.png)
HDMI
VisionShare Key Features
Vision a professional collaboration solution
True Plug & Play
Simply plug in the HDMI player and get started. No software or driver installation and no maintenance is required.



New Wireless 60GHz Technology
Achieved a new level of wireless generation by using 60 GHz frequency band, we deliver a great technology impact with satisfying results.

Simply Connect with True Performance
Intuitive meeting from the huddle room to a conference room.
No Software No Installation
No Complicated Set-Up
VisionShare is the only solution that provides wireless Full HD resolution without any software installation.


True 1080p and WUXGA
offer the best viewing experience
Enhance your entertainment experience by delivers a vividly clear picture, without compression lost.

1920X1080P@60Hz

1920X1200P@60Hz
Embedded Power
VisionShare battery with thin and light design (only 5mm) thickness, Battery embedded system with rechargeable 2500mAh battery that able to present at 3.5 hours.


VisionShare A10 | A10+

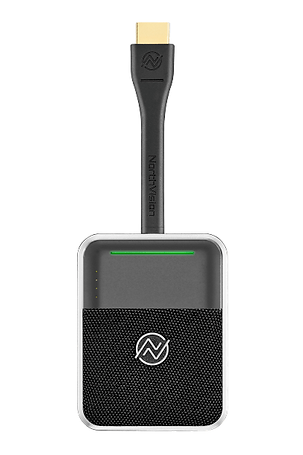

Transmitter
One Play Button
-
Fast Switch between Players
-
Power Embedded
.png)
Simply plug into PC HDMI then push the Play button to start presenting.
HDMI Plug & Play
LED Bar
-
Battery Power LED Indicator
-
Signal LED light
Dural Design
-
Water Resistant
-
Magnetic Attraction
-
UV coating
Receiver

BYOD Screen Mirroring
Support personal devices and NotebookWirelessly in split-screen
Auto Pairing
Mobility carry from room to room, only press "Play' button in 10 sec. pairing system runs automatically.

RESET USB/TOUCH HDMI OUTHDMIOUT1KEYBOARD/MOUSE LAN DC IN 5V/4A AUDIO OUT
I/O Connectitivy
VisionShare support 2x HDMI outputs that provide the same image for two displays or projectors.

Magnetic Attraction Design
-
Transmitter charge without extra effort, simple and easy in the right position by magnetic attraction
Power Station

Extra Power Charge / Daisy Chain
-
Easy charge via cordless station
-
USB output design for extra power charge

VisionShare A10 | A10+ Product Specification
Model Name
VisionShare A10 VisionShare A10 +
Resolution
Up to 1920x1080 / 1920x1200 @60Hz
Video Quality
Uncompressed content
Video Frame Rate
Up to 1920x1200 60 fps
Support OS
Windows, MAC, Chrome, Any OS supporting HDMI standard 1.4
Data Rate Wireless
Up to 28Gbps
Wireless Distance
Up to 10 m / 33 feet
Video Output Receiver
HDMI 1.4 x2
Player Battery
Up to 3.5 hours
Player Connector
HDMI input x1, Micro USB x1, Button x1 (Play/Stop)
Base Station Connector
HDMI output x2, RJ45 LAN x1, 3.5mm Audio out x1, USB Type A x1
Signal Power Station
NA Yes
Mirroring360 Supports
BYOD, Split-Screen, Screen Mirroring / Air play
Dual Display Output
Yes
Extended Desktop
Yes
Power Supply
Input: AC 100-240V, Output:5V/4A
USB Wireless Touch
